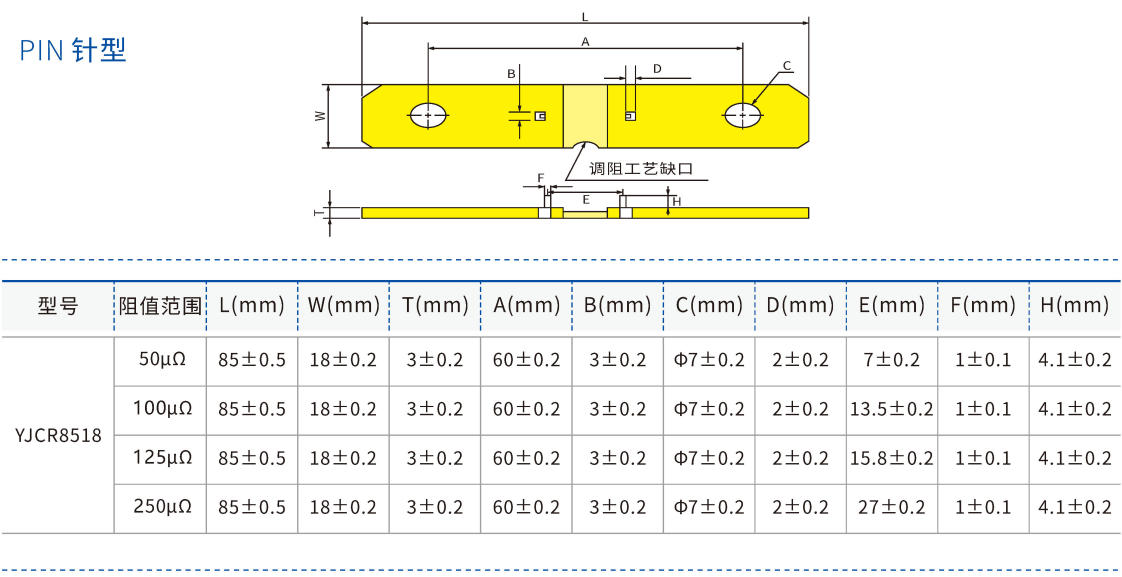

YJCR8518 series automotive grade precision manganese copper splitter
Model：YJCR8518 series
Introduction：Accuracy of ± 0.5%, ± 1%, ± 5%.
Temperature coefficient of resistance: ± 100ppm/° C.
Working temperature range: -40 ° C~+170 ° C
Electron beam welding structure, high reliability and stability.
Low thermoelectric potential (<1.0 μ V/° C)
Low parasitic inductance (<3nH).
Compliant with AEC-Q200.
Compliant with environmental requirements such as RoHS.
Support customization of special specifications.
