Introduction：Accuracy is ± 1% and ± 5%.
Temperature coefficient of resistance: ± 50ppm/° C.

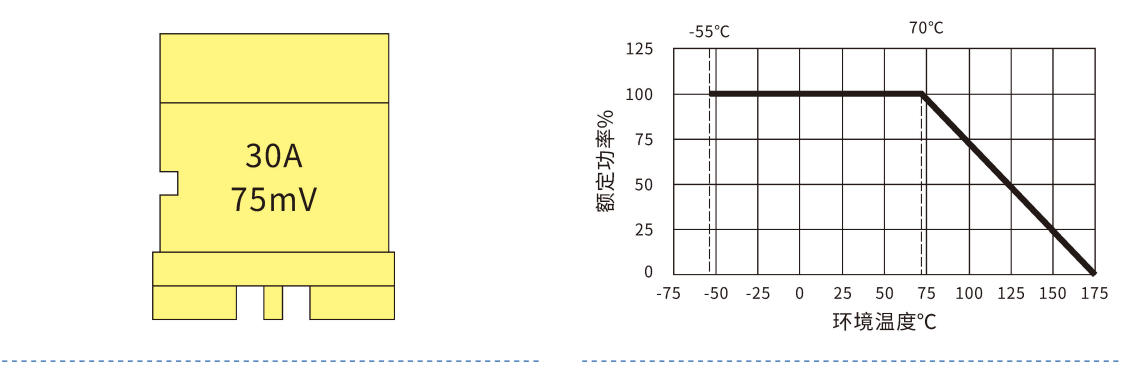

Working temperature range: -55 ° C~+175 ° C
The electron beam welding process has good welding performance, and the pure copper pins are easy to solder.
High reliability, high overload capacity, and high product accuracy.

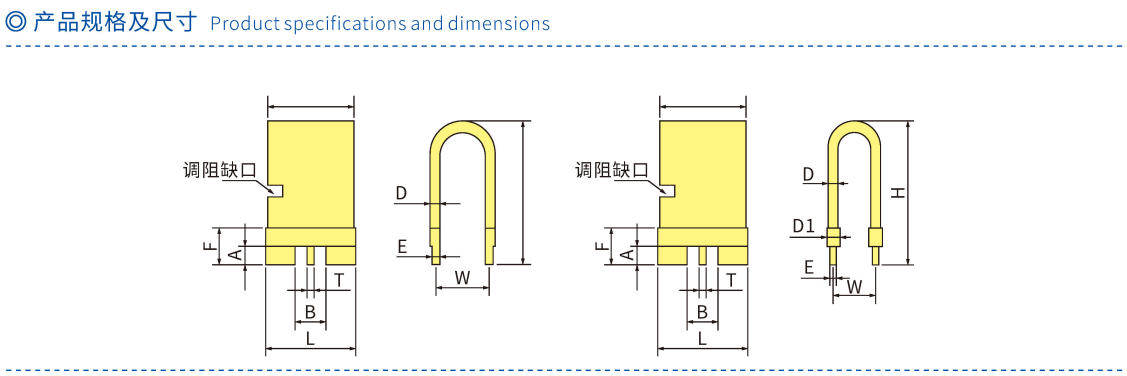

The U-shaped plug-in splitter can be provided with tin plated pins or without tin plated pins.
Low thermoelectric potential (<1.0 μ V/° C)
Low parasitic inductance (<5nH).
Compliant with AEC-Q200.
Support customization of special specifications.
