YJER1216 series four terminal shunt surface mount resistor
Model：YJER1216 series
Introduction：Accuracy of ± 0.5%, ± 1%, ± 5%.

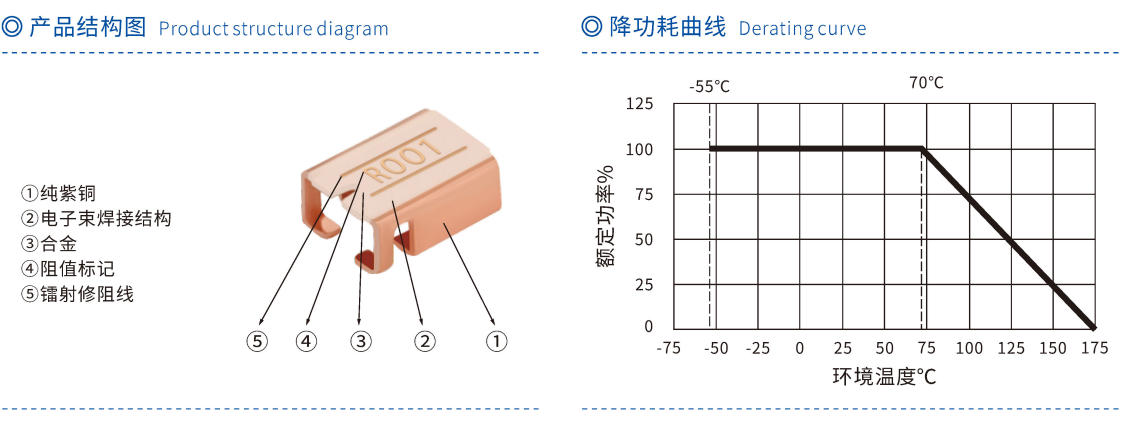

The electron beam welding process, four terminal structure, and pure copper electrode are ideal solutions for current detection applications.
Alloy material: Manganese copper (M), Kama (K).
Working temperature range: -55 ° C~+175 ° C
Good product consistency, reliability, high stability, and strong pulse resistance.
Extremely low thermoelectric potential (<1uV/° C)
Ultra low parasitic inductance (<2nH), fast response speed, can be used for detecting high-frequency AC currents.

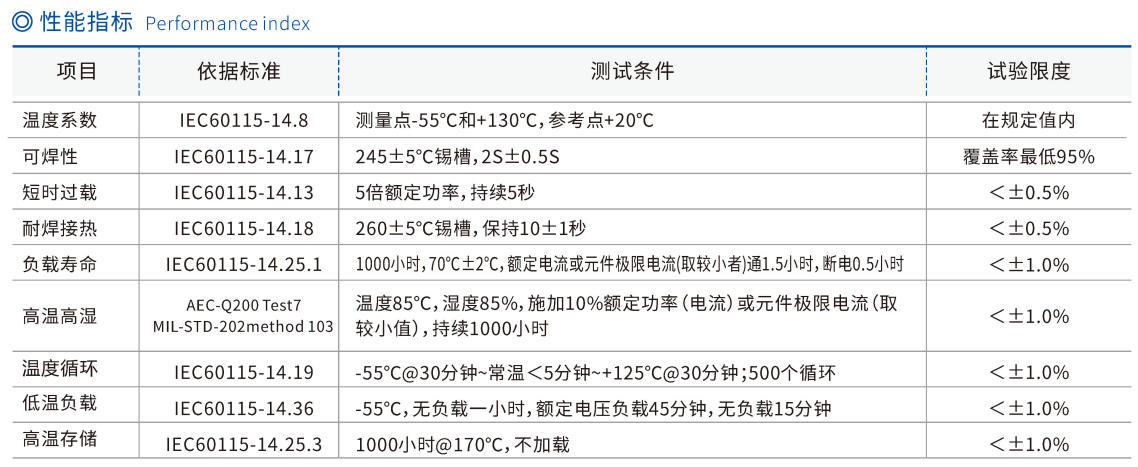

Compliant with AEC-Q200.
Compliant with environmental requirements such as RoHS.
Support customization of special specifications.
