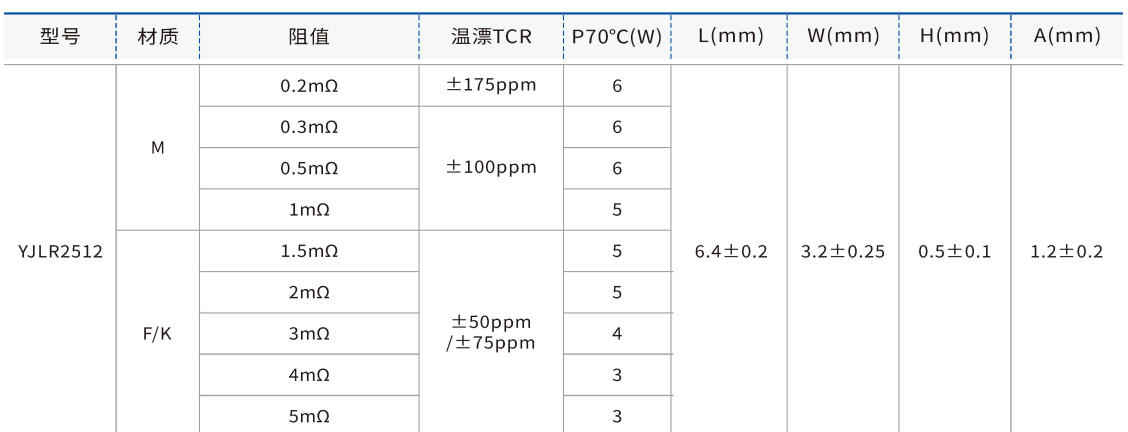

YJLR series bare chip beam welding alloy current sensing resistor
Model：YJLR series
Introduction：Accuracy of ± 0.5%, ± 1%, ± 5%.

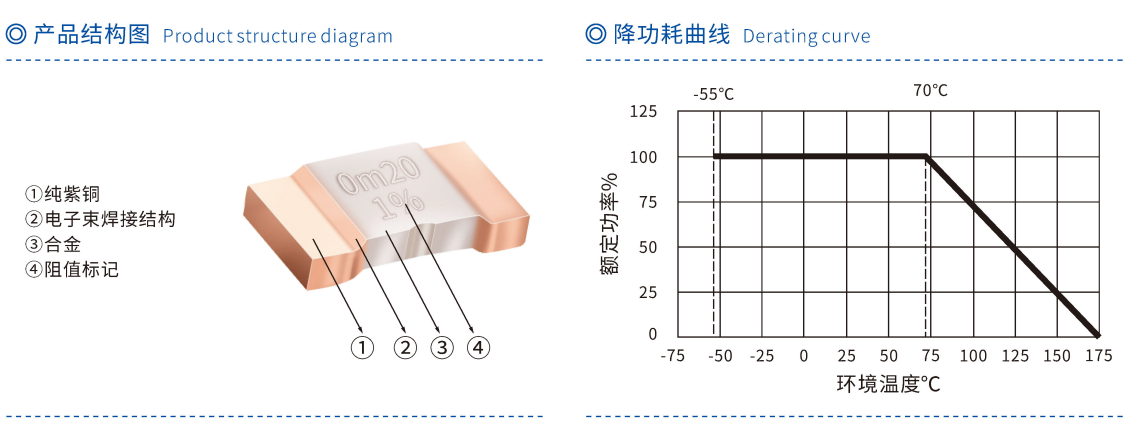

Electron beam welding of alloy resistors and pure copper electrodes is an ideal solution for current detection applications.
Alloy materials: Manganese Copper (M), Kama (K), Iron Chromium Aluminum (F).
Working temperature range: -55 ° C~+175 ° C
Good product consistency, reliability, high stability, and strong pulse resistance.
Extremely low thermoelectric potential (<1uV/° C)
Ultra low parasitic inductance (<3nH), fast response speed, can be used for detecting high-frequency AC currents.

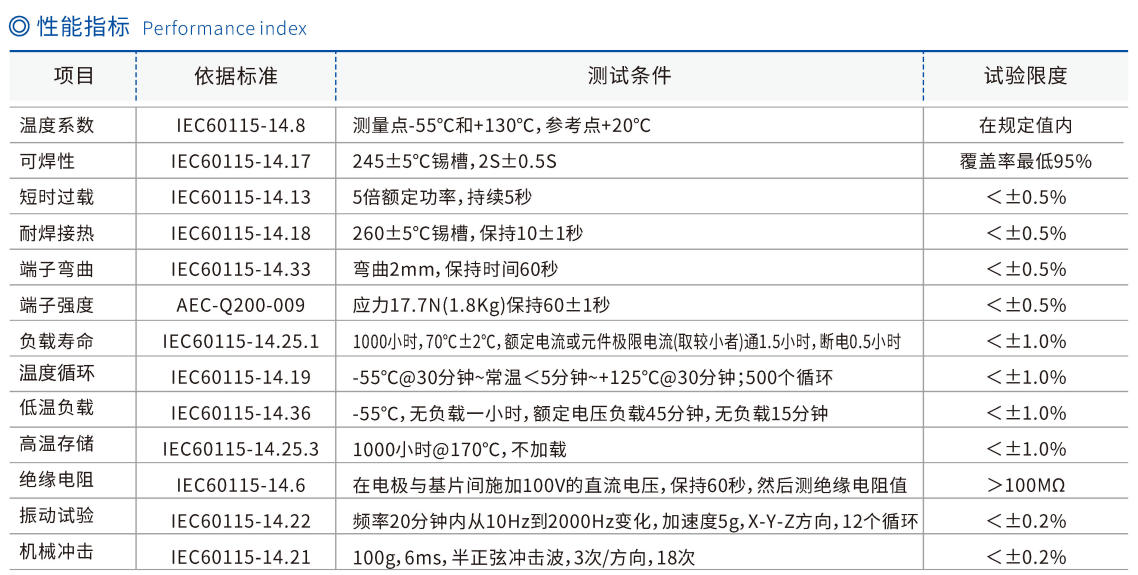

Compliant with AEC-Q200.
Compliant with environmental requirements such as RoHS.
Support customization of special specifications.
